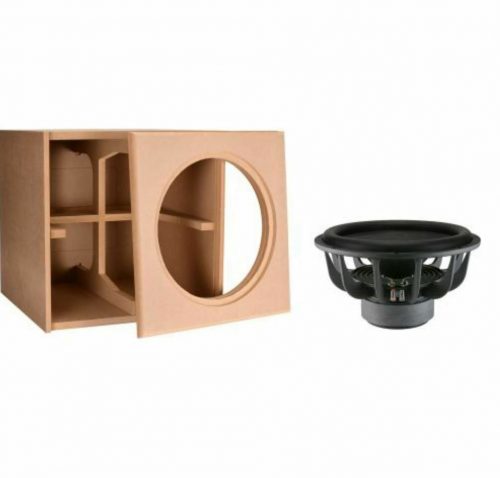

Dayton Audio 15″ Ultimax Subwoofer 800W RMS/1600W-Max and Cabinet Bundle

Original price was: $699.99.Current price is: $499.99.

-

Highlights
  • 3.0 cubic foot CNC-cut cabinet made of 3/4″ MDF panels with a 1-1/2″ thick front baffle
  • Includes Dayton Audio’s 15″ Ultimax subwoofer for maximum bass output
  • Save over $30 off the original retail price with this bundle
Compare
SKU: M300-7097 Categories: , Tag: Brand:

Description

Build one of the most powerful subwoofers you’ll ever experience using this precision-cut, CNC-machined subwoofer cabinet and the Dayton Audio UM15-22 15″ subwoofer. Save over $30 off the original retail price when you order this bundle..

Dayton Audio 15″ Ultimax Subwoofer and Cabinet Bundle

Buy this 3.0 cubic foot knock-down cabinet together with the Dayton Audio UM15-22 15″ subwoofer and save over $30 off the original retail price.

About the Cabinet

This particular cabinet is designed specifically for the Dayton Audio 15″ Ultimax subwoofer, but works for any subwoofer with an overall diameter of 15-3/8″ or less, and a cutout requirement of 14″ or less. For optimum performance with the Ultimax 15″ subwoofer, add three pounds of Acousta-Stuf polyfill for a Qtc of 0.707 and an f3 of 35 Hz.

During the CNC manufacturing process, rabbets and dadoes are cut into the back panel for precise panel alignment. A unique two-piece brace adds superior rigidity without affecting the subwoofer’s performance. Both side panels feature 3/4″ rabbeted extensions with recesses to perfectly install the first piece of the two-part, double thick baffle. Plate amplifier installation is made easy by following the scribed interior guide with a jig saw and by modifying one of the braces.

The end result is a resonance-free, sealed subwoofer cabinet that is purpose-built to extract the best performance from Dayton Audio’s 15″ Ultimax subwoofer. All that’s left to do is finish it to match your décor or paint it to stand out. When your friends ask about it, you get the pleasure of saying, “I built it myself!”

Specifications: • Panel thickness: 3/4″, front baffle is 1-1/2″ • Panel material: Medium Density Fiberboard (MDF) • Finished net cabinet volume (subtracting the double thick baffle, bracing, and woofer volume): 3.0 cubic feet • External dimensions: 19.25″ H x 19.25″ W x 20″ D • Subwoofer recess: 7/16″ • Weight: 52 lbs. • Made in the U.S.A.

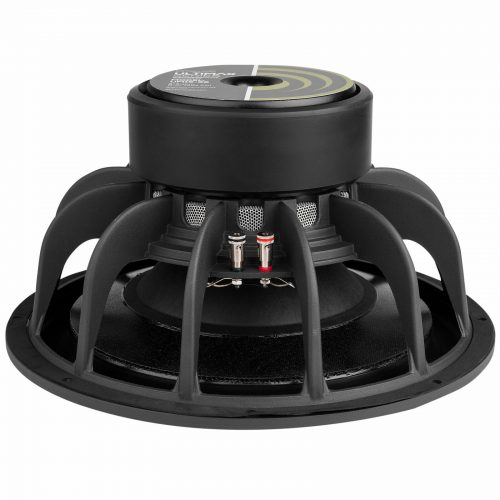

About the Subwoofer

The Ultimax Series of dual voice coil subwoofers, from Dayton Audio, are not for the faint of heart. Built using the latest in subwoofer technology, Ultimax subwoofers are the pinnacle of low frequency driver design. An Ultimax subwoofer tests the strength of your foundation with fast, articulate, gut-wrenching bass.

Dual 2 ohm voice coils allow for stereo 2 ohm and mono 1 ohm wiring configurations when connecting to high current car audio and professional audio amplifiers to extract maximum power. For home audio applications, simply wire the voice coils in series for a benign 4 ohm load for greater amplifier compatibility.

To improve power handling, increase thermal management, and reduce power compression, Dayton Audio designed the Ultimax Series with large black anodized formers and vented pole pieces, under-spider ventilation, and two-layer copper voice coils.

Over 1-1/2″ of travel (3/4″ Xmax) is kept completely linear through the use of dual spiders that also limit distortion and rocking modes. “Tall-boy” rubber surrounds with integrated gaskets maintain driver surface area during extreme excursion moments. Thick, one-piece Nomex honeycomb covered cones are covered with woven, heavy-duty glass fibers creating ultra-still cones that resist deformation.

A large copper sleeve and copper pole cap in the motor reduce energy storage from inductance, with the side benefit of lowering distortion for “faster” response. Large dual-stacked, high-energy magnets handle the heavy lifting and bring Qts down to a level where Ultimax subwoofers can be used in vented or sealed cabinets and enclosures.

Specifications: • Power handling: 800 watts RMS/1,600 watts max • Le: 1.31 mH • Impedance: 4 ohms  (2 ohms/coil) • Re: 3.4 ohms • Frequency range: 15-1,500 Hz • Fs: 19.5 Hz • SPL: 89.5 dB 2.83V/1m • Vas 7.92 cu. ft. • Qms: 2.4 • Qes: 0.59 • Qts: 0.47 • Xmax: 19 mm • Dimensions: Overall diameter: 15.28″, Cutout: 13.78″, Depth: 7.55″.

Note: All parameters derived with voice coils wired in series.



Dayton Audio 15″ Ultimax Subwoofer and Cabinet Bundle includes the following items:
Qty Part # Item
1 300-7082 Denovo Audio Knock-Down MDF 3.0 cu. ft. Subwoofer Cabinet for Dayton Audio 15″ Ultimax Subwoofer

1 295-514 Dayton Audio UM15-22 15″ Ultimax DVC Subwoofer 2 ohms Per Coil

No substitutions allowed. The above may include some items that are not available for purchase separately.



Additional information

Weight 90 lbs
